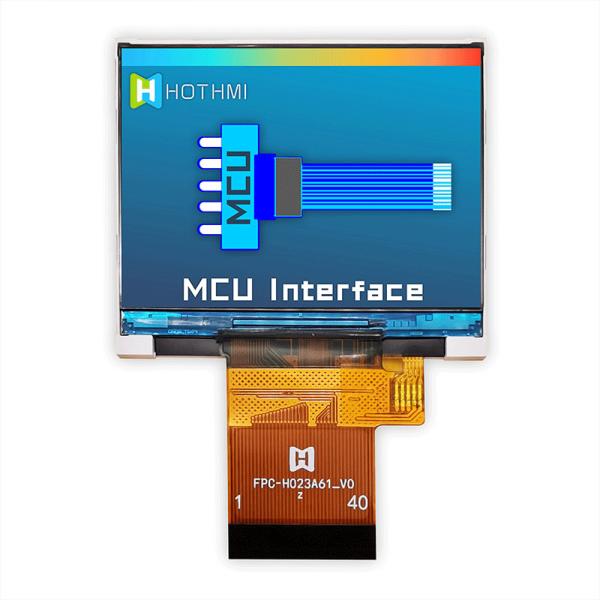

Practical 2.3" Square TFT Display Panel 320x240 Pixels TFT-H023A61LQTIL2N40

Brand Name : HOTHMI

Model Number : TFT-H023A61LQTIL2N40

Place of Origin : dongguan,China

MOQ : 2

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 99999

Delivery Time : 25 days

Dimensions (mm) : 51.00x45.8x2.5

Viewport Window Size : 2.3"

Effective Size (mm) : 46.75x35.06

Display Content : 320x240

Product Type : TFT Square Screen

Contact Now

2.3 inch square standard TFT without touch screen/320x240 Pixels/TFT-H023A61LQTIL2N40

Product parameters

Display Size - 2.3"
Product Applications - Instruments, Meters
Viewing Angle - 12H
Backlight type or brightness - 250cd/m2
Connection method PIN number - FPC-40PIN
Interface - 8080 MCU 8/16-Bit
Working temperature - (-20~70℃)
Supply Voltage - 2.8V
Driver IC Model - ILI9342C

Item

Standard Value

Unit
Display Size 2.3 inch Inch
Number of Pixels 320(H)x3(RGB)x 240(V) dots
Active Area 46.75(H)x 35.06(V) mm
Outline Dimension 51.00(H) x 45.80(V)x 2.50(D) <TFT> mm
Viewing Direction

12 O'clock

 -
TFT Interface

8080 MCU 8/16-Bit

 -
TFT Driver IC ILI9342 -

TFT Driver Condition

 VCI=2.8V,IOVCC=1.8V(Typ) V
Backlight White LED/4 PCS/4 LEDs parallel -
Touch Panel Without TP With RTP With CTP -
CTP Driver IC - - - -
CTP Driver Condition VDD=3.3V(Typ) V
Operation Temperature -20 ～ 70

℃
Storage Temperature -30 ～ 80

℃

Product Description


TFT-H023A61LQTIL2N40 is an industrial-grade horizontal display TFT LCD screen with a resolution of 320x240 pixels, the typical brightness of the LCD screen is 250 nits, and the viewing angle is 12H direction; the supply voltage (VCI) is 2.8V~3.2V, typical value is 2.8V. The working temperature is -20℃~+70℃, and the storage temperature is -30℃~+80℃. The products are used in various small smart devices, home appliances, monitors, etc.
